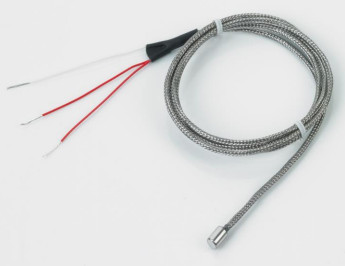

Pt100 Bearing Sensor

Description

Compact Pt100 bearing sensor for temperature
measurement in low thermal mass applications.
 Pt100 3 wire Class B
 Low Thermal Mass
 1 metre stainless Steel lead wire
 3.2mm or 6mm diameters
 Bearing Temperature Monitoring
 Motor Windings
 Bearing Plates
Pt100 Bearing Sensor
Made in the UK
Description
Features
Specification
Application
For more information visit:
sterlingsensors.co.uk
T: +44 (0) 161 620 0410 F: +44 (0) 161 627 0507 E: sales@sterlingsensors.co.uk W: sterlingsensors.co.uk

Fitmec Works ⁞ Hawksley Street ⁞ Oldham
United Kingdom ⁞ OL8 4PQ
Tip Length 10mm
Lead Length 1 metre
Our range of bearing RTDs are designed for accurate and
reliable temperature measurement where there are space
limitations. They are available with a Class B Pt100
element, 3-wire configuration and are used to detect
changes in bearings and motor windings, however can be
used in many applications where a low thermal mass
option is required. Available in 3.2mm or 6mm diameter
with an 10mm long stainless steel tip and complete with a 1
metre 7/0.2mm diameter stranded, PFA insulated, stainless
steel over-braided extension cable with 50mm tails.
