Mineral Insulated RTD with Threaded Pot Seal
Mineral Insulated RTD with Threaded Pot Seal
Description

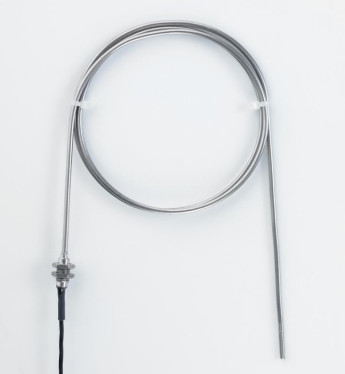

Mineral Insulated RTD (Pt100) with threaded pot seal and 1
metre lead wire.
Mineral insulated resistance thermometers are suitable for
use with temperatures up to 600°C. The RTD is supplied
within a 3mm or 6mm diameter probe which can be
supplied in various lengths. The sensor is terminated with
an M8 threaded pot seal; epoxy resin filled with one metre
of FEP/FEP insulated leads for connection to a process or
instrumentation.
Mineral insulated resistance thermometers can be shaped
using formers (with a radius of three times the probe
diameter) or manipulated to angles to suit the application.
They can also be manufactured in very long lengths.
Specification
Features
- Mineral insulated cable
- Wide temperature range
- Can be formed and shaped to fit the process
- 1 metre FEP/FEP 3 wire stripped leads
- Threaded pot and lead for connection in bulkheads
- Can be made in long lengths
Application
- Research & Development
- Manufacturing processes
- Furnaces & Ovens
