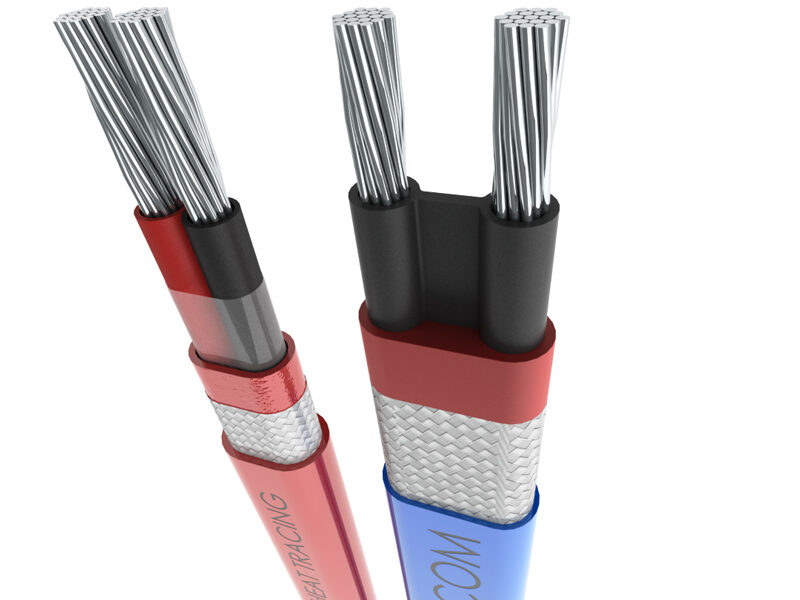

FFHT-X Self Regulating Heating Cable
https://www.fati.com/2021/wp-content/uploads/2022/07/Heat-Cables-Self-Ruel.pdf
Features
· Energy efficient, automatically varies its power output in response to pipe temperature changes.
· Easy to install, can be cut to any length (up to 125 meters) required on site with no wasted cable.
· Lower installed cost than steam tracing, less maintenance expense and less downtime.
· No overheat or burnout even when wrapped over itself (overlapped).
· Suitable for use in non-hazardous, hazardous and corrosive environments.
· FATI power connection, splice, tee and end seal kit will reduce installation time.
· Optional outer jacket, the heating cable is resistant to watery and inorganic chemicals and corrosive.
Option
·FFHT-X…C Tinned copper or stainless steel braid provide additional mechanical protection and a positive groundpath.
·FFHT-X…CG High Temperature Fluoropolymer overjacket are used for exposure to organic or corrosive solutions or vapors may
Technical data
Service voltage 110V/230V
Maximum maintain temperature
(power on) +120℃ (250℉)
Maximum exposure temperature
(power off) +200℃ (390℉)
Minimum installation temperature -40℃ (-40℉)
Protective braid resistance ﹤18.2Ω/km
Bus wire gauge 16 AWG
Approvals EPT 16 ATEX 2551 X
FFBT -X
Self Regulating Heating Cable
Features
· Energy efficient, automatically varies its power output in response to pipe temperature changes.
· Easy to install, can be cut to any length (up to 125 meters) required on site with no wasted cable.
· Lower installed cost than steam tracing, less maintenance expense and less downtime.
· No overheat or burnout even when wrapped over itself (overlapped).
· Suitable for use in non-hazardous, hazardous and corrosive environments.
· FATI power connection, splice, tee and end seal kit will reduce installation time.
· Optional outer jacket, the heating cable is resistant to watery and inorganic chemicals and corrosive.
Option
·FFBT-X…C Tinned copper braid provide additional mechanical protection and a positive groundpath.
·FFBT-X…CG High Temperature Fluoropolymer overjacket are used for installationin hazardous location
or where corrosive solutions or vapors may be present.
FFBT -X
Self Regulating Heating Cable
Application
FFTB-X is an industrial grade, ATEX approved self-regulating parallel heating cable (heating tape) manufactured
in accordance to BS6351 Grade 22, that can be used for applications ranging from process heating
or maintenance of temperature up to 65℃. It can be used in hazardous and non-hazardous locations,
including areas where corrosives may be present.
Features
The FCTU series of self-regulating heating cables are designed to supply a specified amount of heat at
any point along their length in direct response to local temperature variations. These cables can maintain
temperatures up to 375°F (190°C) and will withstand 190 psig saturated steam purging and intermittent
temperature excursions to 475°F (250°C) with power applied. FCTU cables can be cut to length
and terminated in the field, and will not overheat or burnout when overlapped.
Type Dimension Min.bending
radius
Weight
(kg/100m)
FFBT-X…C 9.3×4.4mm 26mm 9.7
FFBT-X…CT 10.3×5.4mm 32mm 9.5
FCTU
Self Regulating Heating Cable
Application
·The industrial grade FCTU cables provide freeze protection and process temperature maintenance for fluid
transport and storage systems requiring very high levels of heat output or exposure to elevated temperatures.
The bus wires, jackets and metallic braids can be configured for both ordinary (non-classified) locations and
hazardous (classified), including areas where exposure to corrosive or organic materials is possible.
Power Adjustment Factor
Part No. 208 Volts 277 Volts
15FCTU2-CT 0.87 1.17
30FCTU2-CT 0.88 1.14
45FCTU2-CT 0.90 1.10
60FCTU2-CT 0.94 1.08
Self Regulating Heating Cable
